A water heater installation in Willoughby, OH is a planned job, and most of the work happens before the new unit arrives. The decisions that matter are fuel, tank size, where the unit sits, how it vents and which code items come with it.
This page is for homeowners adding a heater to a remodel, converting from one fuel to another, moving a unit, or choosing the next one on purpose instead of in a panic. If your tank is leaking now, see our water heater replacement page. Our 24/7 line covers emergencies, but installs are scheduled visits.
Three measurements before anyone orders a unit
First, how much hot water the household actually uses. Count people, bathrooms and how often showers overlap. A two-person house and a six-person house with a soaking tub need different capacities.
Second, the space. A standard tank needs clearance for service, a drain path for the relief discharge and a level floor. A heat pump unit also needs about 1,000 cubic feet of air around it, according to the U.S. Department of Energy, and a room that stays between 40 and 90 degrees Fahrenheit.
Third, the utilities. We check gas line size and meter capacity, the electrical panel's spare capacity and the vent route. These three often decide the choice before preference does.
How each type goes in
The table compares what the installation itself involves, not which one to buy.
| Type | What gets connected | What to confirm first |
|---|---|---|
| Gas tank | Gas line and shutoff, vent or flue, water lines, relief discharge | Vent condition, combustion air and gas supply |
| Electric tank | A dedicated circuit, water lines, relief discharge | Panel capacity and wire size, which an electrician may need to address |
| Heat pump tank | A circuit, water lines, condensate drain, sometimes ducting | Room size, air temperature and a place for the condensate to go |
| Gas tankless | Larger gas piping, sealed vent, a 120 volt outlet, drain | Gas pipe size, vent type and condensate handling. See tankless service |
Electrical panel upgrades are done by a licensed electrician, not by us.
Planning an install?
Call with your fuel type, tank size and location, and we will tell you what to measure first.
Venting and combustion air
On gas units, venting is the part that most often changes the plan. A tank that uses a chimney needs a flue that still drafts properly. If the chimney is lined for an old furnace, a newer, more efficient heater sends up cooler exhaust that may not draft well.
Willowick and Wickliffe have median home ages near 1957, and many such houses have original masonry chimneys. Sidewall venting through a rim joist is a common alternative, and it means a new vent kit and a wall penetration. Ask for that to be scoped on the visit, since the vent can outweigh the heater itself in the price.
A heater in a tight utility closet also needs combustion air. We check the room volume and the louvers, because a sealed closet starves the burner.

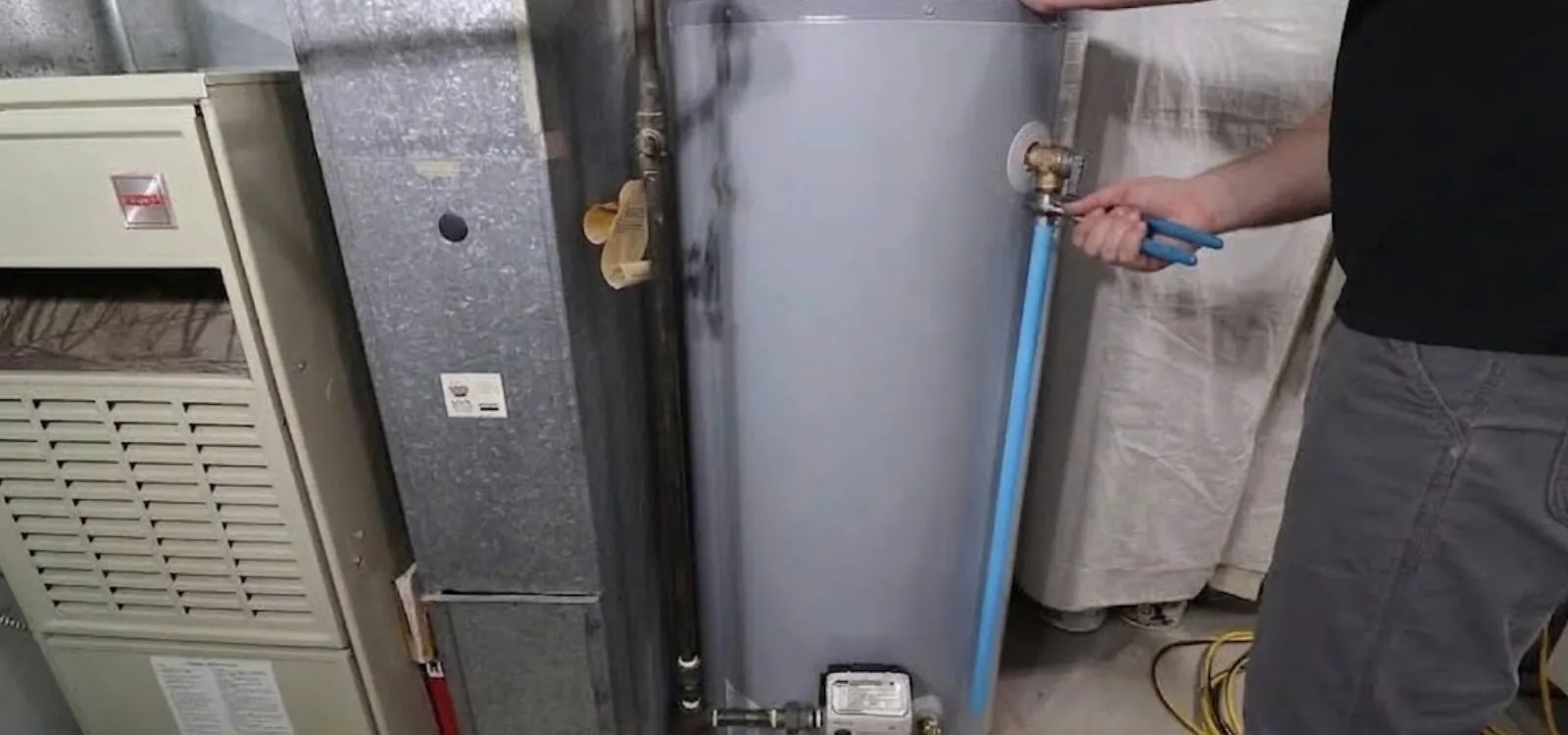

What install day looks like
The sequence for a standard tank install, from shutoff to test.
- 1
Prepare the space
Floor and path are protected, the water and gas or power are shut off, and the old unit is drained if there is one.
- 2
Set and level
The new heater goes on a level base, with a drain pan fitted where the location or code calls for one.
- 3
Connect water and fuel
Supply lines get new connectors and shutoffs. Dielectric nipples or unions separate dissimilar metals where needed. Gas joints are leak tested.
- 4
Vent and relief piping
The vent is sloped and sealed. The relief valve discharge pipe runs down to a safe spot and stays open.
- 5
Fill and test
We fill, purge air, check every joint and set the thermostat. Gas units get a combustion and draft check before we leave.
Items worth adding while the heater is open
These are cheap to do now and expensive to retrofit later.
Thermal expansion tank
If the house has a check valve or pressure-reducing valve on the incoming line, an expansion tank gives heated water somewhere to go, so the relief valve is not opened every cycle.
Drain pan with a drain line
A pan piped to a floor drain or sump protects the floor from a slow weep. It does not cure a failing tank, but it limits the damage.
Full-port shutoff valves
A ball valve on the cold inlet makes the next service call simpler and faster.
Flexible connectors and unions
Unions let the heater be removed without cutting pipe the next time.
Clearance and a service path
Leaving room to reach the anode rod and drain valve makes the yearly maintenance the manufacturers recommend practical.
Permits and who pulls them
Plumbing permits inside the City of Willoughby are issued by the city's Division of Building Inspection, and Willoughby also issues separate gas-piping permits. Willoughby Hills and Willowick fall under the Lake County Building Department, which lists a water heater only permit and treats expansion tanks as permit items. Fees change, so check the current schedule.
Ohio sets a boundary: heaters above 200,000 Btu per hour, 210 degrees Fahrenheit or 120 gallons fall under boiler and pressure vessel rules. A standard home tank is far below that. The plumber follows the Ohio Plumbing Code and the local permit rules.
Where to put a heater in a cold-winter house
The Cleveland area has a January mean near 29 degrees Fahrenheit, with the average first fall freeze around October 28. A heater in an unheated garage or an exterior wall closet faces freeze risk on its supply lines and loses more heat standing still. Inside the heated envelope, usually a basement, it runs more efficiently.
Lake County Building Department's design table lists about 40 inches of frost depth, so any new outdoor or underground water line has to be buried below that. Moving a heater farther from the kitchen and bathrooms adds pipe length, which wastes water waiting for heat. If the new location is far from the fixtures, talk to us about a recirculation option or plumbing installation for a shorter run.
What an installation price depends on
An install price depends on what the house needs around the heater. You get a clear price before work starts, and we explain which items are required and which are optional.
Type and size of unit
Heat pump and high-efficiency units cost more than standard tanks, and capacity changes the price too.
Vent work
A reused flue is simple. A new sidewall vent or liner is a separate job.
Fuel conversion
Switching fuels can add gas piping or an electrical circuit, which may need a licensed electrician.
Code items
Expansion tank, relief discharge piping, drain pan and new shutoffs are common additions.
Permit and inspection
Some addresses require a permit and an inspection, and the fees depend on the issuing office.
Insurance note. Homeowners insurance does not pay for a planned installation or upgrade, though it can respond to sudden water damage, so call for your number.
Installation questions
Often, yes. Moving a heater changes the piping, the vent or flue, the gas line and the drain, so we scope the new location first. If gas venting or combustion air is the limit, we say so. Long runs to far fixtures can also mean waiting longer for hot water, which we discuss during the visit.
If your home has a check valve, a backflow preventer or a pressure-reducing valve on the incoming line, the plumbing is a closed system and heated water has nowhere to expand. In that case an expansion tank is typically the fix. Lake County lists expansion tanks as permit items, and we confirm yours on site.
It depends on the number of people, the number of bathrooms and how often showers overlap, as well as fuel type. Gas recovers faster than electric, so a smaller gas tank can do the work of a larger electric one. Tell us how many people live in the home and we will talk through the likely size.
Usually, if the space and drain suit it. The unit needs about 1,000 cubic feet of air around it, an ambient temperature between 40 and 90 degrees Fahrenheit and a condensate drain. It also cools the room it sits in, which can be welcome in summer and less welcome in a cold basement in January.
Planned installs are booked as same-day or scheduled appointments when available. The 24/7 emergency line is for failures, such as a leaking tank or no hot water, and the dispatcher will tell you how we handle those. If you smell gas, leave and call the gas utility or 911 first.
Where the city or county requires one, we pull it and arrange the inspection. The City of Willoughby issues its own permits, while Lake County handles other nearby communities such as Willowick. Eastlake, Mentor and Wickliffe use their own offices, and we confirm the right one for your address before work.
